PakWater Care Services Offers World Latest Technologies of Process for Mineral Water (Bottled Water) Production from Different Source of water Like Bore Hole, Deep Well, River Water, Sea Water etc. Water is passed through following different stages for process of filtration & separation in packaged drinking water plant process. Manufacturing Mineral Water i.e. water containing sufficient/required quantity of minerals which is required to human bodies.
Process Raw Water Storage
Multi Graded Sand Filter
Remove suspended matter from the water.
Activated Carbon Filter
Remove Color, Odor and Smell from the water. Remove Oil & Grease from the raw water. Control the BOD & COD in the raw water.

Antiscalant Dosing System

Remove Hardness Minerals from Feed Water which would otherwise cause Mineral Deposits [scale] within the Water Purification System.

Cartridge Filter/Micron Filtration

Remove 1-5 micron particles from the raw water.

High Pressure Pump

To create osmotic pressure in raw water.

Desalination System by Reverse Osmosis Membrane Element

To desalt the raw water i.e. to reduce total dissolve solids.

Ion Controlling System/Remineralization

To adjust the minerals contains in the Process water by means of mixing of raw water in the desalted Treated water, Due to proportionate mixing Required quantity of raw water, we can mix to get required Quantity of ions from the raw water to desalted water.

Storage of Treated Water

Remove back pressure in R. O. Membrane elements.

UV system

To kill the bacteria from fine water.

Ozonation

Prevent the biological & micro organism growth in the stagnant water.

Fine Polishing Filtration

To filter water from 1 micron to 0.2 micron rating & achieve the crystal clear filtered mineral water.

Rinsing Filling & Capping with Label shrinking

To rinse, Fill & capping of the bottle of mineral water.

Bottle Manufacturing Machine

To manufacture the PET bottle from Pet granules.

Reverse Osmosis Membrane Cleaning System

To clean the membrane when it comes in maintenance stage.

Packing of mineral water in Bottles, container or poly pack.

To pack the final production in the selected packing to sell it in the market.

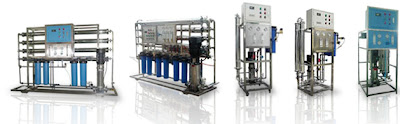

The mineral water plant consisting following equipments for different process of filtration & separation during the manufacturing mineral water. The Equipments in the project of packaged drinking water manufacturing unit are as follows:


1. Raw Water Storage tank
2. Raw Water Feeding Pump
3. Multi Graded Sand Filter
4. Activated Carbon Filter
5. Antiscalant Dosing system
6. Ultra Violet Disinfection System
7. Micron Filtration System
8. High Pressure Pump
9. Reverse Osmosis Element
10. Pressure Vessel for elements
11. Electric Control Panel
12. Instruments and Instrument Panel
13. Micron Filtration for Minerals Controlling System
14. Treated Water Storage Tank
15. Treated Water Transfer Pump
16. Fine Polishing Micron Filtration System
17. Ultraviolet Disinfection System
18. Ozone Generating Set
19. Ozone Reacting Tank
20. Ozone Circulating Pump
21. R.O. Membrane Cleaning System
22. Injection molding Machine
23. Stretch Blow Moulding Machine
24. Rinsing Filling & Capping Machine
25. Label Shrinking Machine
26. In house Laboratory
Following are the requirement and it is managed by the Purchaser
1. Water Source (Bore Well)
2. Raw Water Storage
3. Power
4. Snap caps for 20 ltrs container
5. Food grade PVC caps for bottles
6. Pet granules for pet bottle manufacturing
7. Rappers for bottles & containers
8. Civil works for installation
9. Operating Staff
10. Legal Clearance.
